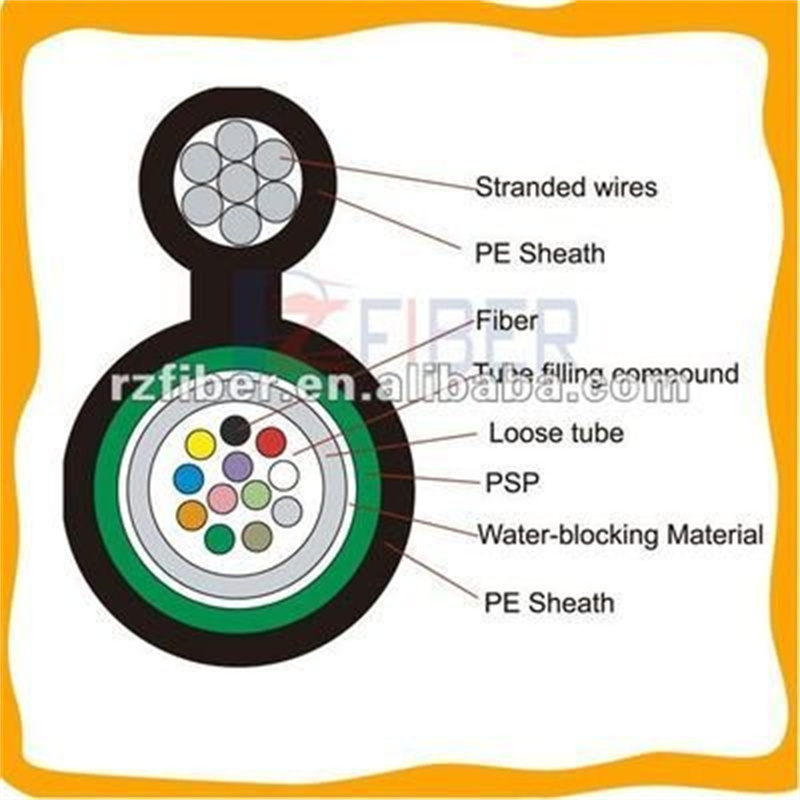

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ PSP tape longitudinal cover cable core as moisture barrier.
♦ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation.
| Optical Characteristics | |||||||||||
| Item | G.652 | G.655 | 50/125um | 62.5/125um | |||||||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||||||||
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | |||||||||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | |||||||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||||||||
| Bandwidth (Class A) |
@850nm | ≥500MHZ.km | ≥200MHZ.km | ||||||||
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||||||||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||||||||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||||||||
| Technical Parameters | |||||||||||
| Cable Type | Fiber Count | Cable Diamete rmm |
Cable Weight kg/km | Supporting Wire Spec | Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N/100mm) |
Bending radius Static/Dynamic (mm) |
||||

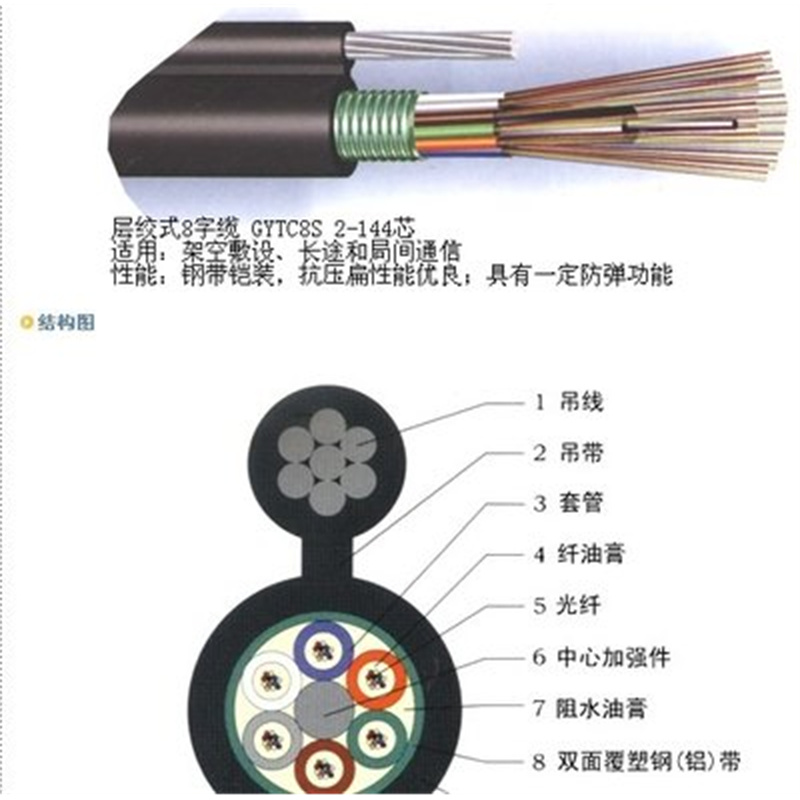

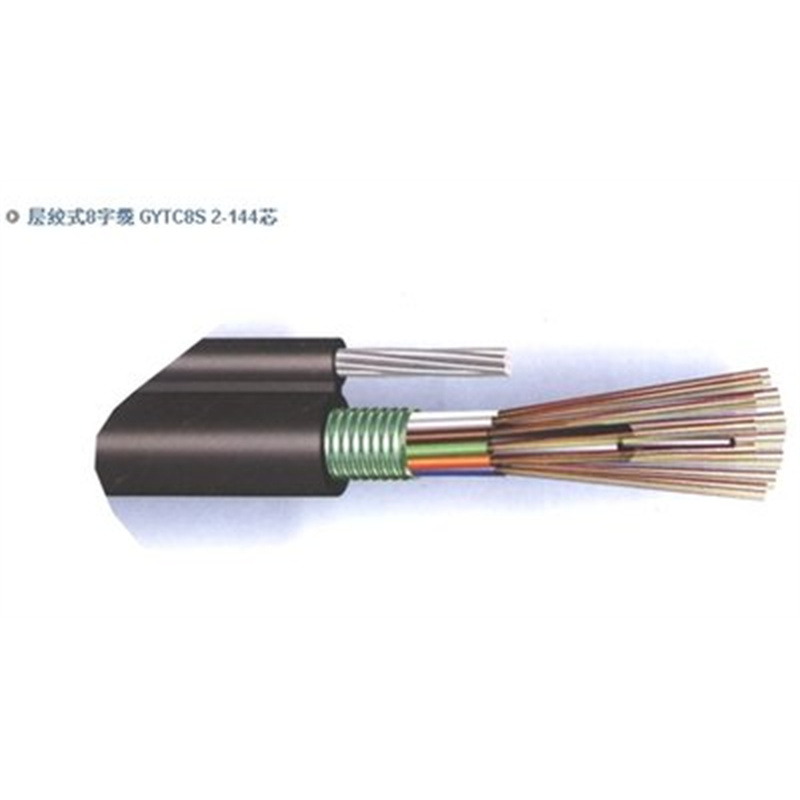

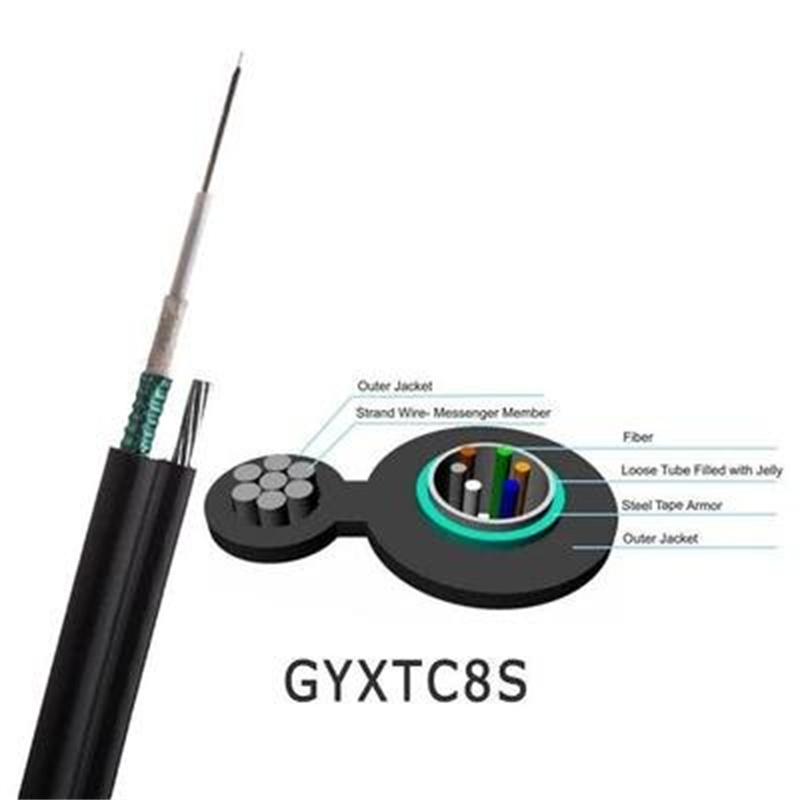

| GYXTC8S | 2-24 | 8.0*13.5 | 100 | ф1.2mm Stranded Wires |
2000/5000 | 1000/3000 | 80/160 | ||||
| Environmental characteristics | |||||||||||
| Operating temperature | -40~+70℃ | ||||||||||
| Storage temperature | -40~+70℃ | ||||||||||
| Standards | |||||||||||
| Comply with standard YD / T 1155, IEC 60794-3 and other standards. | |||||||||||
