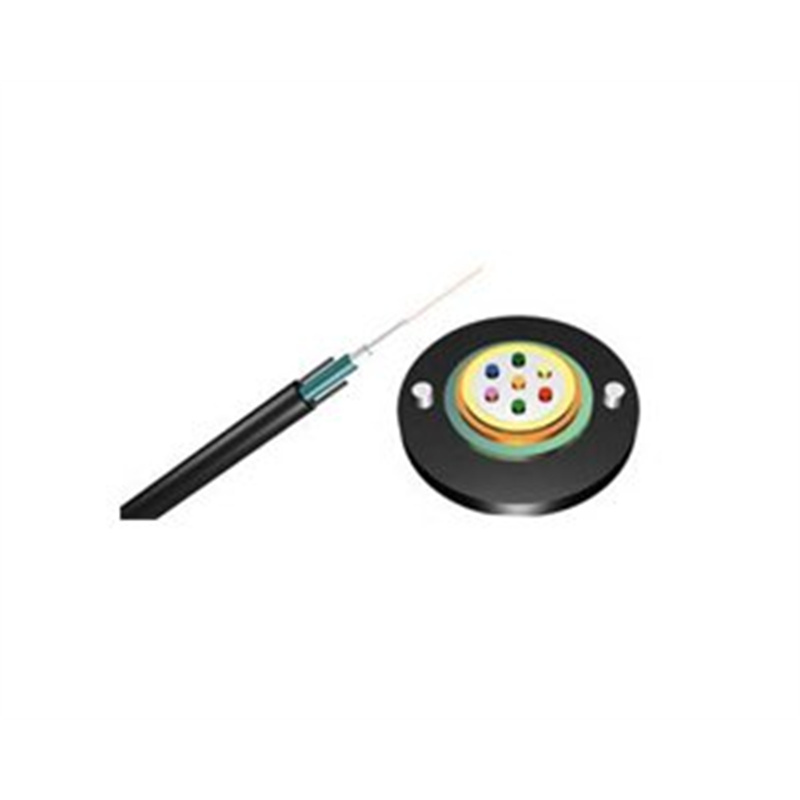

♦ Excellent mechanical and temperature performance.
♦ High strength loose tube that is hydrolysis resistant.
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Two parallel steel wires ensure tensile strength.
♦ Good crush resistangce and flexibilityt.
♦ PSP provide good moisture-proof performance.
♦ Small diameter,light weight and friendly installation.
| Optical Characteristics | |||||||||
| Item | G.652 | G.655 | 50/125um | 62.5/125um | |||||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||||||
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | |||||||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | |||||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||||||
| Bandwidth (Class A) |
@850nm | ≥500MHZ.km | ≥200MHZ.km | ||||||
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||||||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||||||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||||||
| Technical Parameters | |||||||||
| Cable Type | Fiber Count | Cable Diamete rmm |
Cable Weight kg/km | Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N/100mm) |
Bending radius Static/Dynamic (mm) |
|||

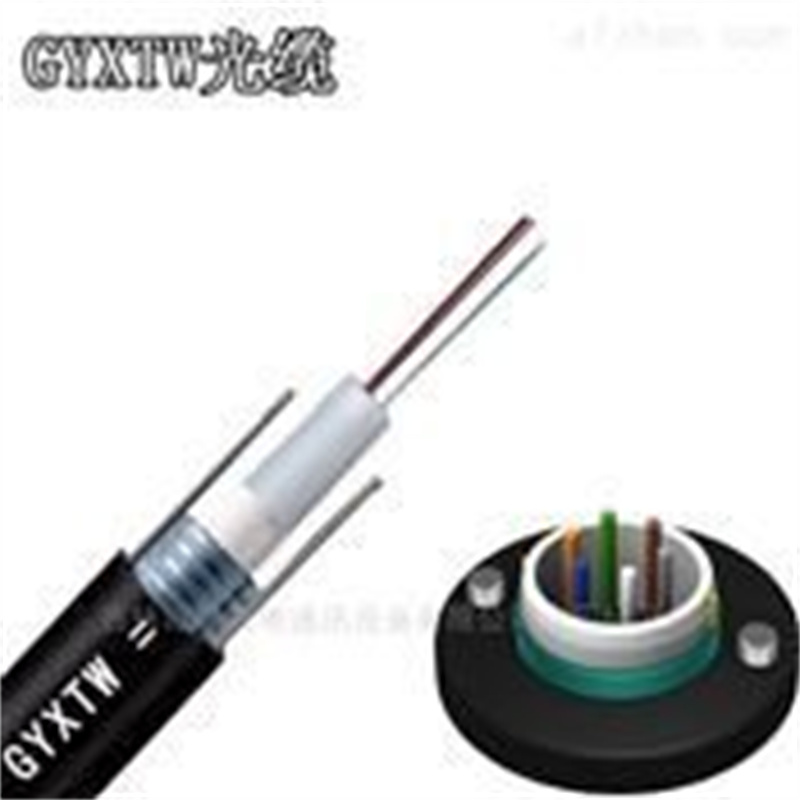

| GYXTW-2~12 | 2~12 | 8.0 | 60 | 600/1500 | 300/1000 | 10D/20D | |||
| GYXTW-14~24 | 14~24 | 8.5 | 75 | 1000/3000 | 300/1000 | 10D/20D | |||
| Environmental characteristics | |||||||||
| Operating temperature | -40~+70℃ | ||||||||
| Storage temperature | -40~+70℃ | ||||||||
| Standards | |||||||||
| Comply with standard YD / T 769 and other standards. | |||||||||
